The Four Side Area Calculator determines the area of any quadrilateral. It supports standard shapes (Rectangles, Trapezoids) and, crucially, "Irregular Quadrilaterals" commonly found in land surveying.
Unlike simple shapes, an irregular four-sided figure cannot be solved with side lengths alone (it could be "flexed" into different areas). This calculator uses the "Diagonal Method" (splitting the shape into two triangles) to provide a mathematically rigorous solution.
Features
1. Standard Shape Presets: Quickly calculates area for Rectangles, Trapezoids, Parallelograms, Rhombuses, and Kites using standard formulas.
2. Irregular Land Mode: Solves for general quadrilaterals where angles are unknown. Users input the four side lengths (A, B, C, D) and one diagonal length to "lock" the geometry.

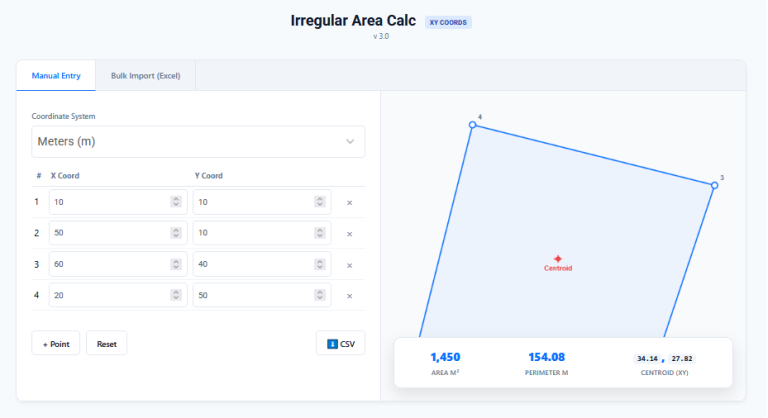

3. Visual Validation: Draws the shape to scale (SVG), allowing users to verify that the calculated shape matches their sketch.
4. Acreage Conversion: Instantly converts the result into Acres, Hectares, and Square Feet, making it ideal for real estate and property logic.
5. Cost Estimation: Optional input for "Price per Unit" to calculate the total value of the land or material.
Uses
- Land Surveying: Calculating the exact area of a plot of land that isnt a perfect rectangle.
- Construction: Estimating concrete or flooring for odd-shaped rooms.
- Farming: Determining the acreage of a field for seed or fertilizer requirements.
- Carpentry: Finding the area of material needed for custom projects like table tops or decks.
Tips
- The Diagonal is Key: For irregular shapes, measuring the four sides is not enough. You must measure the distance between two opposite corners (the diagonal). Without this, the area is mathematically indeterminate.
- Bretschneider's Formula: If you know the angles instead of the diagonal, you would use Bretschneider's formula. However, measuring a diagonal is usually easier in the field than measuring accurate angles.
- Order Matters: Enter sides in order around the perimeter (Side A, then B, then C, then D).
- Triangle Inequality: The calculator automatically checks if the shape is possible. For example, one side cannot be longer than the sum of the other sides plus the diagonal.
FAQs
Why do I need the diagonal length?
Imagine a square made of four sticks hinged at the corners. You can "squish" it into a flat diamond shape. The sides stay the same length, but the area changes drastically. The diagonal "locks" the shape in a rigid position, allowing for an exact calculation.
Can I use this for a square?
Yes, simply select "Rectangle/Square" in Standard Mode. You only need one side length for a square.
How accurate is the GPS method vs this?
This method (tape measure) is generally more accurate for small plots (like a backyard) than standard phone GPS. For huge farms, GPS is sufficiently accurate and much faster.
What if my land has 5 sides?
You must split it into simpler shapes (triangles and quadrilaterals), calculate the area of each, and add them together.
Final Words
Calculating the area of a four-sided polygon is a classic problem that trips up many people who assume length times width works for everything. By using the diagonal method, this calculator ensures professional-grade accuracy for any plot of land, no matter how irregular.
